Integrated Laser Rangefinder: Built-in laser rangefinder measures precise distances up to 1,200 meters with ±1 meter accuracy, ideal for targeting and ranging.
Four Color Modes: Features Black Hot, White Hot, Red Hot, and Fusion modes for clear target recognition and comfortable viewing in diverse environments and weather conditions.
Rugged and Versatile: Engineered for reliability, durability, and performance in all conditions, compact design supports applications like night hunting, observation, rescue missions, and hiking.
Media and Connectivity: Supports video and photo capture with WiFi connectivity for easy sharing and app integration.
High-Resolution Display: Equipped with a 2.4-inch AMOLED display at 600×450 resolution for sharp, vivid imaging.
Advanced Detector: Utilizes a 12μm high-sensitivity detector with clean slate algorithm and NETD <30mk for stable performance and clear image details.
Ballistic Calculations: Includes highly accurate ballistic calculations and portable ballistic recording for precise performance.
PiP Mode with Zoom: Inset window in PiP mode defaults to 2× digital zoom, cycling through 2×, 4×, and 8× for enhanced viewing.

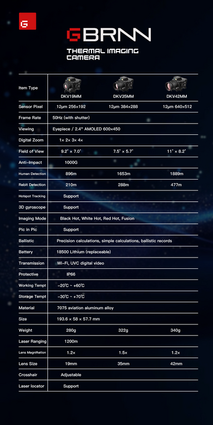

Item Type
DKV19MM
DKV35MM
DKV42MM
Sensor Pixel
12μm 256×192
12μm 384×288
12μm 640×512
Frame Rate
50Hz (with shutter)
50Hz (with shutter)
50Hz (with shutter)
Viewing
Eyepiece / 2.4" AMOLED 600×450
Eyepiece / 2.4" AMOLED 600×450
Eyepiece / 2.4" AMOLED 600×450
Digital Zoom
1×, 2×, 3×, 4×
1×, 2×, 3×, 4×
1×, 2×, 3×, 4×
Lens Size
19mm
35mm
42mm
Field of View
9.2° × 7.0°
7.5° × 5.7°
11° × 8.2°
Anti-Impact
1000G
1000G
1000G
Human Detection
897m
1652m
1889m
Rabbit Detection
211m
389m
472m
Crosshair
Adjustable
Adjustable
Adjustable
Laser Locator
Yes, Support
Yes, Support
Yes, Support
Hotspot Tracking
Yes, Support
Yes, Support
Yes, Support
3D Gyroscope
Yes, Support
Yes, Support
Yes, Support
Imaging Mode
Black Hot, White Hot, Red Hot, Fusion
Black Hot, White Hot, Red Hot, Fusion
Black Hot, White Hot, Red Hot, Fusion
Pic in Pic
Yes, Support
Yes, Support
Yes, Support
Ballistic
Precision calculations, simple calculations, ballistic records
Precision calculations, simple calculations, ballistic records
Precision calculations, simple calculations, ballistic records
Battery
18500 Lithium (replaceable)
18500 Lithium (replaceable)
18500 Lithium (replaceable)
Transmission
Wi-Fi, UVC digital video
Wi-Fi, UVC digital video
Wi-Fi, UVC digital video
Protective
IP66
IP66
IP66
Working Temp.
-20℃ ~ +60℃
-20℃ ~ +60℃
-20℃ ~ +60℃
Storage Temp.
-30℃ ~ +70℃
-30℃ ~ +70℃
-30℃ ~ +70℃
Material
7075 aviation aluminum alloy
7075 aviation aluminum alloy
7075 aviation aluminum alloy
Size
193.6 × 58 × 57.7 mm
193.6 × 58 × 57.7 mm
193.6 × 58 × 57.7 mm
Weight
280g
322g
340g
Laser Ranging
1200m
1200m
1200m
Lens Magnification
1.2×
1.5×
1.0×
